Applications and Advantages of Silicon Carbide Heating Elements in Furnaces

In today’s demanding industrial environments, high-efficiency and long-lasting heating solutions are critical for optimizing furnace operations. Silicon Carbide (SiC) heating elements have emerged as a reliable choice across various industries, thanks to their high-temperature capabilities, thermal stability, and cost-effectiveness. Whether you’re operating a silicon carbide heating element furnace in a laboratory, metallurgical facility, or ceramics plant, SiC elements offer exceptional performance under harsh conditions.

This blog explores the key applications and advantages of silicon carbide heating elements, highlighting why more manufacturers are turning to SiC heating rods and heaters for consistent, energy-efficient, and durable furnace heating. From their resistance to oxidation and thermal shock to their ability to function in various atmospheric conditions, discover why silicon carbide heater technology continues to shape the future of industrial heating.

Silicon carbide (SiC) heating elements are widely used in industrial furnaces and high-temperature applications due to their exceptional properties. These heating elements offer several advantages and find applications in various industries.

What Are Silicon Carbide Heating Elements?

Silicon carbide (SiC) heating elements are solid-state resistive heating devices manufactured from high-purity SiC powder that is shaped, bonded, and sintered at elevated temperatures. These elements operate on the principle of Joule heating — electrical resistance converts electric energy directly into thermal energy.

Unlike metallic elements, SiC heating elements maintain structural integrity and stable resistance even at temperatures up to 1600 °C in oxidizing atmospheres. Their dense, crystalline structure forms a protective silica (SiO₂) layer during operation, which prevents rapid oxidation and chemical attack.

Common configurations include:

• Straight Rods – For vertical or horizontal mounting in box and tunnel furnaces.

• U-Shaped Elements – For compact furnace designs requiring uniform heating zones.

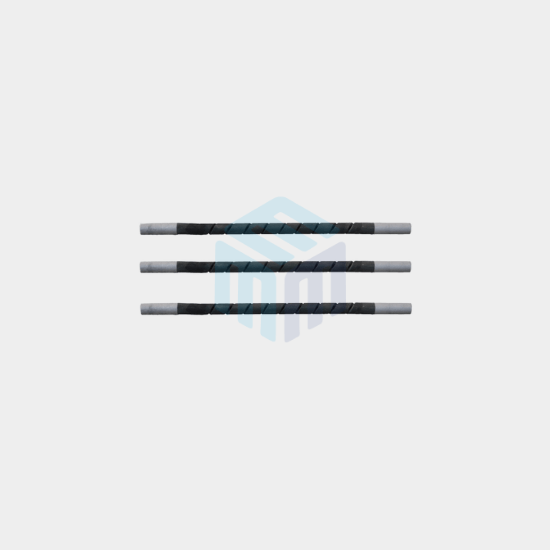

• Double Spiral or Dumbbell Types – For applications with variable heating profiles or limited installation space.

• Bayonet Elements – Used in indirect heating or gas-tight applications.

By combining high thermal conductivity, low thermal expansion, and high mechanical strength, SiC heating elements are ideal for continuous industrial duty with minimal downtime.

Applications of Silicon Carbide (SiC) Heating Elements:

Here are the key applications and advantages of silicon carbide heating elements in furnaces:

1. High-Temperature Furnaces: Silicon carbide heating elements are commonly used in high-temperature industrial furnaces, such as electric arc furnaces, rotary kilns, and induction furnaces, where temperatures can exceed 2,000°C (3,632°F). They are particularly suited for applications that require extremely high temperatures.
2. Metal Heat Treatment: SiC heating elements are used in heat treatment processes for various metals, including annealing, hardening, tempering, and sintering. Their high-temperature capability and uniform heat distribution make them ideal for these applications.
3. Ceramics and Glass Manufacturing: Silicon carbide heating elements are employed in the production of ceramics and glass, where consistent and precise heating is essential for shaping, fusing, and annealing processes.
4. Chemical Processing: SiC heating elements are used in chemical industry applications, such as chemical vapor deposition (CVD) and other high-temperature reactions. They can withstand aggressive chemical environments and maintain stable performance.
5. Semiconductor Manufacturing: Silicon carbide heating elements are utilized in semiconductor fabrication processes that require high-temperature ovens and furnaces, such as doping, diffusion, and annealing of silicon wafers.
6. Kilns and Pottery: In the pottery and ceramic industry, SiC heating elements are used in kilns for firing clay and porcelain products due to their long service life and uniform heating capabilities.
7. Heat Treating of Alloys: SiC heating elements are used in the heat treatment of metal alloys, including stainless steel, to improve their mechanical properties and corrosion resistance.
8. Laboratory Furnaces: Small-scale and laboratory furnaces often incorporate SiC heating elements for precise temperature control and uniform heating in various research and testing applications.

Advantages of Silicon Carbide (SiC) Heating Elements:

1. High-Temperature Capability: Silicon carbide heating elements can withstand extreme temperatures, making them suitable for applications that require heating to very high levels.
2. Rapid Heating and Cooling: They have excellent thermal conductivity, allowing for quick heating and cooling cycles, which can improve process efficiency.
3. Long Service Life: SiC heating elements have a long operational lifespan, reducing the need for frequent replacements and associated downtime.
4. Uniform Heating: These heating elements provide even and consistent heat distribution, ensuring that materials are heated uniformly and preventing hot spots in the furnace.
5. Chemical Resistance: SiC heating elements are resistant to many corrosive gases and chemicals, making them suitable for processes in aggressive environments.
6. Low Maintenance: They require minimal maintenance, reducing operating costs and downtime.
7. High Power Density: SiC heating elements can deliver high power in a compact space, which is beneficial in applications with limited furnace dimensions.
8. Low Thermal Expansion: Silicon carbide has a low thermal expansion coefficient, reducing stress on the heating element and extending its life.

Core Industrial Applications Across Industries

SiC heating elements are deployed in diverse high-temperature industrial environments where precision, efficiency, and durability are critical.

a) High-Temperature Furnaces

• Use case: Electric resistance, tunnel, rotary, and chamber furnaces.

• Reason: SiC elements can handle continuous cycles at 1400–1600 °C without warping or degrading, making them indispensable for demanding production runs.

b) Metal Heat Treatment

• Processes: Annealing, forging, brazing, stress relieving, and sintering.

• Benefit: Even, rapid heating reduces cycle time while maintaining metallurgical integrity.

c) Ceramics & Glass Processing

• Applications: Firing, sintering, glazing, and melting.

• Advantage: Uniform temperature distribution prevents warping and defects in end products.

d) Semiconductor & Chemical Industry

• Processes: Diffusion, CVD (Chemical Vapor Deposition), oxidation, and doping.

• Why SiC?: High purity and chemical resistance minimize contamination risks in sensitive production environments.

e) Laboratory & Kiln Applications

• Usage: Pilot plant studies, research furnaces, and test kilns.

• Strength: Rapid heat-up and cool-down enable flexible experimental schedules and multiple daily cycles.

Across these sectors, SiC heating elements outperform traditional metallic heating systems by offering longer operational life, lower energy consumption, and better thermal control.

Conclusion:

Silicon carbide heating elements have proven to be indispensable in a wide range of high-temperature industrial applications. Their ability to operate efficiently at elevated temperatures, resist oxidation and corrosion, and maintain stability across various atmospheres makes them a preferred choice in many thermal processing environments. From silicon carbide heating element furnaces used in metallurgy and ceramics to SiC heating rods in laboratories and production lines, these elements offer durability, energy efficiency, and low maintenance.

As the demand for reliable and cost-effective heating solutions grows, silicon carbide heaters continue to lead the way in innovation and performance. For businesses looking to upgrade or optimize their heating systems, consulting trusted SiC heating elements suppliers ensures access to quality products tailored to specific operational needs. Embracing silicon carbide heating elements not only enhances furnace productivity but also contributes to long-term savings and sustainability in industrial heating applications. We are a USA company catering products and solutions in the USA, Australia, New Zealand, Singapore, Malaysia, India, South Korea and Vietnam.
