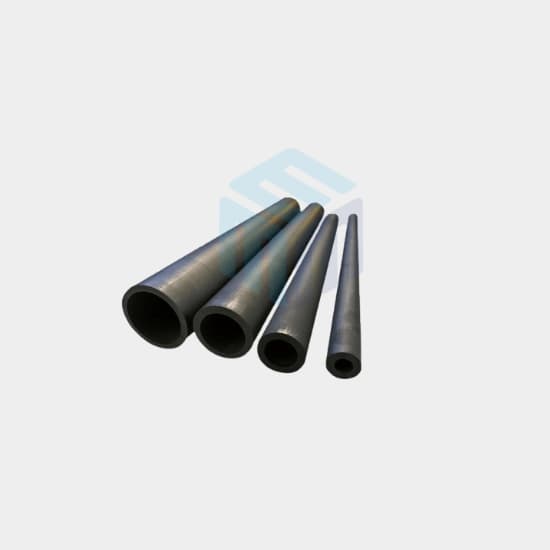

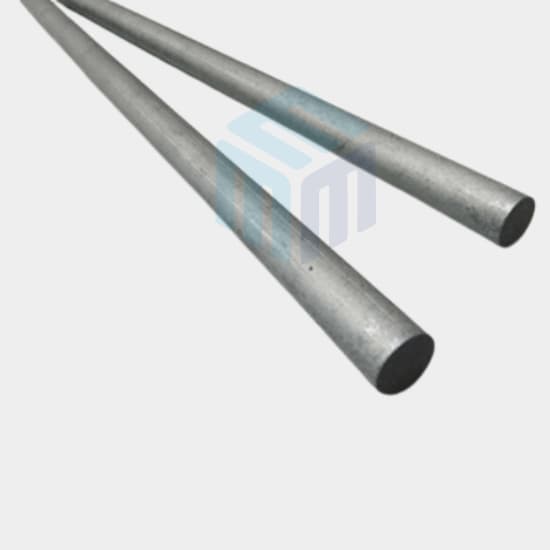

Graphite Tubes, Graphite Pipes and Graphite Rods
Inquiry NowProduct Description
General Description:
Material: Graphite is a form of carbon with a unique atomic arrangement that imparts it with exceptional properties. Graphite tubes and rods are primarily composed of high-purity graphite, which is typically derived from natural graphite or synthetic graphite. High-purity graphite ensures excellent thermal and electrical conductivity.
Graphite is known for its high thermal conductivity, low coefficient of thermal expansion, chemical inertness, and lubricating properties. Graphite tubes and rods find applications in various industries, including metallurgy, chemicals, electronics, and aerospace.
Manufacturing Process: Graphite tubes and rods are usually manufactured through a process called extrusion or isostatic pressing.
- Extrusion: In this process, graphite powder mixed with binders is forced through a die to form the desired shape. The extruded shape is then heated to remove the binders and achieve the final graphite structure.
- Isostatic pressing: Isostatic pressing involves subjecting graphite powder to high pressure in a flexible mold using fluids. This compresses the powder to form a solid structure that is then further processed to obtain the desired tube or rod shape.
Dimensions: Graphite tubes are hollow cylindrical structures with varying inner and outer diameters, wall thicknesses, and lengths. Graphite rods, on the other hand, are solid cylindrical structures with uniform diameters and lengths. The dimensions of graphite tubes and rods can be customized according to specific requirements.
Graphite tubes and rods can be customized with features like threaded ends, flanges, or other connectors to facilitate installation and connections in specific applications.
It’s important to note that the specific properties and dimensions of graphite tubes and rods can vary based on the manufacturer and the intended application. Therefore, it’s advisable to consult the M-Kube team for detailed specifications and recommendations based on your specific needs.
We are a USA company catering products and solutions in the USA, Australia, New Zealand, India, Singapore, Malaysia, South Korea, Indonesia, Dubai, Philippines and Vietnam. Our team of experts across different platforms can discuss and customize your requirements as per your needs.
Please reach out to us at [email protected] or call us at +1-858-605-1447 to discuss your projects.
Properties: Graphite tubes and rods possess several desirable properties, including:
- High thermal conductivity: Graphite tubes and rods have excellent thermal conductivity, allowing efficient heat transfer.
- Low coefficient of thermal expansion: Graphite tubes and rods exhibit a low coefficient of thermal expansion, providing dimensional stability even at high temperatures.
- Chemical inertness: Graphite tubes and rods are resistant to many chemicals, acids, organic solvents and corrosive environments, making it suitable for handling various corrosive substances.
- Lubricating properties: Graphite tubes and rods have natural lubricating properties, reducing friction and wear in applications where sliding or rotating components are involved.
- Electrical conductivity: Graphite tubes and rods are an excellent electrical conductor, making it suitable for electrical applications.
- High-temperature resistance: Graphite tubes and rods can withstand drastic change of temperatures. They can reach the highest operating temperature of 3000℃ in an inert atmosphere.
Applications: Graphite tubes and rods have diverse applications across different industries, including:
- Heat exchangers: Graphite tubes are used in heat exchangers to transfer heat between two fluids while providing corrosion resistance in chemical and petrochemical industries.
- Electrodes: Graphite rods find applications as electrodes in various industries, including metallurgy, chemical processing, and electric discharge machining (EDM).
- Crucibles and molds: Graphite is used as crucibles and molds in high-temperature processes such as metal casting and glass manufacturing. However, in general, graphite can withstand high temperatures ranging from approximately 3,000 to 3,500 degrees Celsius (5,432 to 6,332 degrees Fahrenheit) in an inert atmosphere.
- Semiconductor industry: Graphite components, including tubes and rods, are utilized in semiconductor manufacturing for processes like chemical vapor deposition (CVD) and ion implantation.
- Aerospace and automotive: Graphite tubes and rods are employed in aerospace and automotive applications for their lightweight properties, thermal stability, and lubricating characteristics.
- Electrical applications: Graphite rods are used in electrical contacts, brushes, and current collectors due to their electrical conductivity.
In addition, some excellent properties of withstanding drastic change of temperatures and high temperature resistance make high purity Graphite tubes and graphite rods as a preferred choice in multiple other industrial applications like metallurgy, platinum/gold alloy smelting etc.
