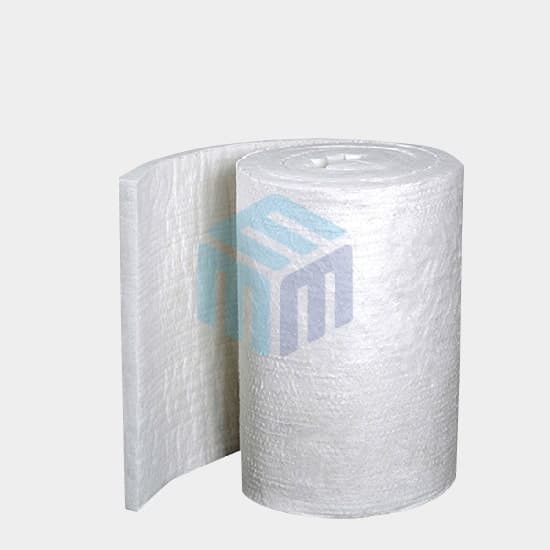

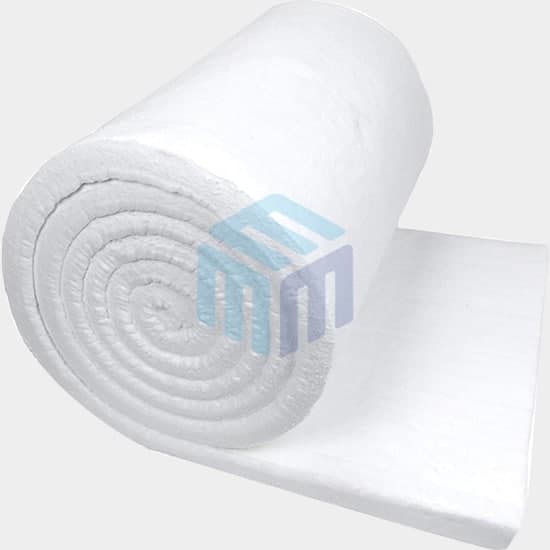

Ceramic Fiber Blanket
Inquiry NowProduct Description
Ceramic fiber blanket products in a wide range of temperature and density compositions, as well as thickness and roll widths. They typically contain no organic materials that could contaminate furnace atmospheres at elevated temperatures. Common characteristics of ceramic fiber blanket are:
- Low thermal conductivity
- Excellent thermal shock resistance
- Low heat storage capacity
Processed Ceramic Fiber
Ceramic fiber can also be supplied in prepared shapes or in modified blanket forms. The most common are:
- Cut strip
- Die-cut shapes
- Wet felt
- Mesh-enclosed shapes
- Foil-backed blanket
Bulk Fiber
For applications that require bulk fiber, offers a complete line of refractory bulk materials, each of which offers its own unique combination of properties. These bulk fibers are produced by varying composition, fiber length, compressed density, fiber content, fiber diameter, and lubricity to serve a wide range of customer needs.
APPLICATION:
Refractory back-up installation
Direct exposure to heat as furnace hot face lining
Expansion joint seal
Fire protection
General high temperature insulation.
Note: Data are average results of standard tests which are subject to variation and should not be used as specification.
SPECFICATIONS:
| AY-CFBL-1000 | AY-CFBL-1400 | AY-CFBL-1400 | AY-CFBL-1500 | ||
|---|---|---|---|---|---|
| Classification Temperature( °C) | 1000 | 1260 | 1400 | 1500 | |
| Bulk Density(Kg/m3) | 130/160/190 | 130/160/190 | 130/160/190 | 130/160/190 | |
| Linear Shrinkage(% ,°C x 24 hrs) | 1.2(800) | 1.3(1100) | 1.5(1200) | <1.5(1300) | |
| Thermal Conductivity Kcal/mh°C (W/mk),ASTMC201 | 130kg/m3 | 130kg/m3 | 130kg/m3 | 160kg/m3 | |
| Mean 400 °C | 0.08 | 0.07 | |||
| Mean 600 °C | 0.13 | 0.12 | 0.13 | 0.10 | |
| Mean 800 °C | 0.17 | 0.16 | 0.20 | 0.19 | |
| Mean 1000 °C | 0.29 | 0.28 | |||
| Chemical Compositon(%) | |||||
| Al2O3 | 42-45 | 47.1 | 35.0 | 35.0 | |
| SiO2 | 55-58 | 52.3 | 49.7 | 49.7 | |
| ZrO2 | / | / | / | 15.0 | |
| Available size | 7200*600*12,25,38, or 3600*600*12,25,38, Special Sizes: Process according to customers’ Demand. | ||||
| Note: Data are average results of standard tests which are subject to variation, don’t show the guarantee data’s of product quality because of fluctuating within certain range and should not be used as specification. | |||||
