Tube Furnace

M-Kube Enterprise LLC supplies a comprehensive range of tube furnaces engineered for high-temperature heating, sintering, annealing, CVD processing, and advanced materials research. Designed for reliability and precision, our laboratory tube furnaces deliver excellent temperature uniformity, advanced programmable control, and long-term operational stability—making them ideal for universities, national laboratories, semiconductor facilities, battery research centers, and industrial heat-treatment operations across the United States.

Whether you need a horizontal tube furnace, vertical tube furnace, quartz tube furnace, or a high-temperature tube furnace with multi-zone control, M-Kube Enterprise LLC provides flexible, performance-driven solutions tailored to both research and pilot-scale production environments.

Key Features

• Single-zone, dual-zone, and multi-zone tube furnace configurations
• Advanced PID programmable controller (30–50 temperature segments)
• Compatible with vacuum operation, inert gas, and controlled atmospheres
• Supports quartz tubes and alumina tubes
• Over-temperature protection with automatic power shutdown
• High-purity insulation for rapid heating and excellent temperature uniformity
• Digital display with optional 7-inch touchscreen interface
• Custom furnace designs available for specialized applications

Available Tube Furnace Models

M-Kube  Enterprise LLC offers a wide selection of tube furnaces designed to meet varying temperature ranges, heating profiles, and experimental requirements—from routine laboratory heat treatment to advanced materials R&D.

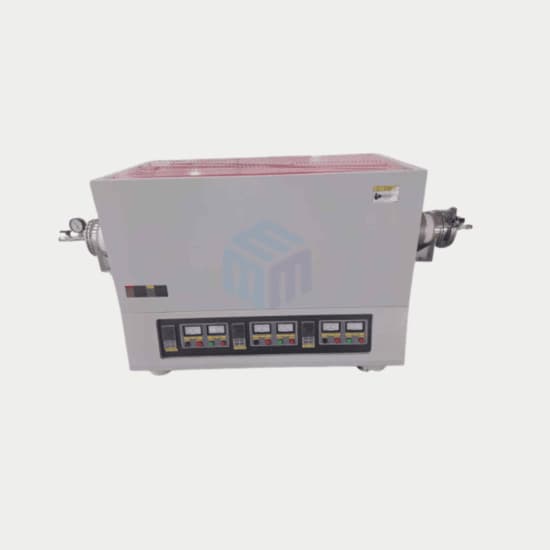

1) Horizontal Tube Furnace

The horizontal tube furnace is the most commonly used lab tube furnace, featuring high-purity quartz or alumina tubes. It supports operation under vacuum, inert gas, or air, making it suitable for a broad range of thermal processes.

Key Features:

• Temperature range: 300°C to 1600°C
• Heating rate: ≤20°C/min
• Excellent temperature uniformity and stable performance
• Automatic over-temperature protection
• Suitable for sintering, annealing, CVD, heat treatment, and materials research
• Optional vacuum system and controlled atmosphere setup
• Optional 7-inch HD touchscreen controller

2. Multi-Zone Tube Furnace

The multi-zone tube furnace is designed for applications requiring temperature gradients or staged heating profiles. Each zone operates independently, allowing precise thermal control across the tube length.

Key Features:

• Available in 2-zone, 3-zone, and 5-zone configurations
• Independent temperature control for each zone
• Ideal for CVD, pyrolysis, gradient sintering, coating processes, and nanomaterial synthesis
• Widely used in semiconductor research and advanced materials development

3.Vertical Tube Furnace

The vertical tube furnace is ideal for applications requiring vertical sample loading, quenching tests, or specialized thermal measurements. Its compact design supports both vacuum and controlled-atmosphere operation.

Key Features:

• Maximum temperatures:
  • 1200°C – Fe-Cr-Al heating elements
  • 1400°C – SiC heating elements
  • 1600°C – MoSi₂ heating elements
• 30-segment programmable temperature controller
• Double-layer, air-cooled outer shell for enhanced operator safety
• Vacuum-compatible sealing flange
• Heating rate: ≤20°C/min
• Suitable for material synthesis, quenching experiments, and thermal analysis

4. Rotary Tube Furnace

The rotary tube furnace is designed for continuous processing and uniform mixing, making it ideal for powder processing and battery material preparation.

Key Features:

• Maximum operating temperature: 1200°C
• 50-segment programmable controller
• Tube rotation speed: 0–10 RPM
• Adjustable tilt angle: 0–30° for easy loading and discharge
• Uniform mixing, coating, and calcination
• Commonly used for lithium-ion battery cathode material processing

5. Sliding Tube Furnace

The sliding tube furnace is engineered for experiments requiring rapid heating and fast cooling, such as graphene growth and advanced CVD applications.

Key Features:

• Maximum temperature: 1200°C
• Sliding rail mechanism for precise thermal positioning
• Fast heating rate: ≤20°C/min
• Excellent insulation (external surface temperature <50°C)
• Integrated gas mixing system with flow meters
• HD touchscreen interface
• Ideal for CVD processes, atmosphere sintering, and advanced materials research

Typical Technical Specifications: Tube Furnace

Applications of Tube Furnaces

• Materials synthesis and powder calcination
• Battery cathode and anode material research
• Chemical vapor deposition (CVD) and thin-film growth
• Semiconductor processing
• Heat treatment, annealing, and aging
• Pyrolysis, crystal growth, and nanomaterial synthesis
• Laboratory-scale and pilot-scale R&D

Why Choose M-Kube Enterprise LLC for Tube Furnaces?

• Complete range of tube furnaces: horizontal, vertical, rotary, multi-zone, and sliding models
• High temperature accuracy with excellent uniform heating
• Long service life and robust construction
• Custom configurations for vacuum, inert gas, and controlled atmospheres
• Reliable supply and technical support across the United States
• Competitive tube furnace price for laboratories and industrial users

Quality and Compliance

All M-Kube Enterprise LLC  tube furnaces are manufactured in ISO-certified facilities and tested in accordance with ASTM, IEC, and relevant international laboratory safety standards. This ensures consistent performance, operational safety, and long-term reliability for demanding laboratory and industrial applications.

Request a Quote Today

Looking for a laboratory tube furnace, small tube furnace, high-temperature tube furnace, or quartz tube furnace for your research or production needs?

M-Kube Enterprise LLC delivers reliable, precision-engineered tube furnaces tailored to US laboratories and industrial environments.
