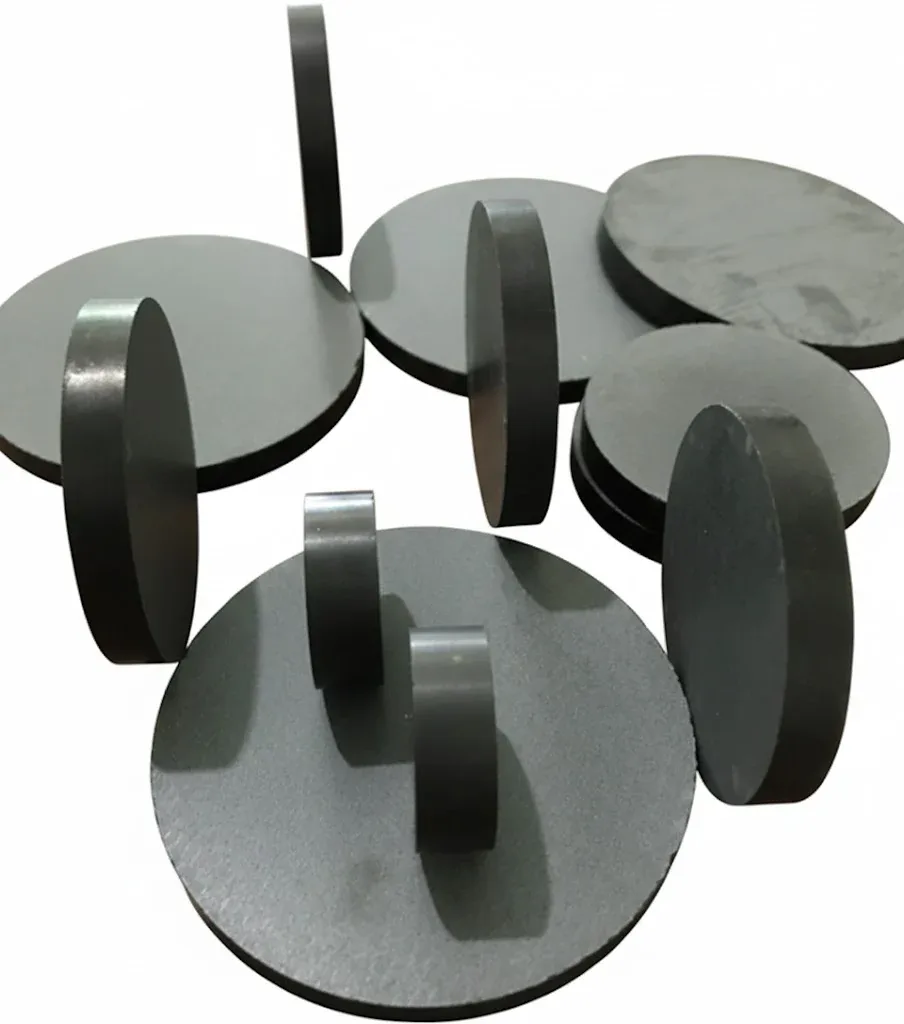

Aluminum Nitride Disc, Plate, Sheet & Substrate

Name: Aluminum Nitride Disc, Plate, Sheet & Substrate
Brand: M-Kube
SKU: 8767
Availability: InStock
Rating: 5 (1 reviews)

Categories: Aluminum Nitride, Ceramic Consumables

Product Description

M-Kube Enterprise LLC supplies premium-quality Aluminum Nitride sheets, discs and plates engineered for superior thermal conductivity, electrical insulation, and dimensional stability. Designed for high-performance electronics, semiconductor devices, laser systems, and thermal management applications, our AlN ceramic substrates offer unmatched reliability in extreme environments.

Whether you need a standard aluminum nitride disc, sheets a thin, high-precision aluminum nitride substrate, or a heavy-duty aluminum nitride plate, M-Kube Enterprise LLC delivers precision-engineered solutions that meet the exact requirements of advanced US industries.

Key Features of Aluminum Nitride Discs , Sheet, Plates & Substrate

Low thermal expansion ideal for electronic and optical alignment systems
High dielectric insulation for high-voltage and RF applications
High flexural strength and structural stability
Chemical inertness against most molten metals and reactive materials
Available in thin substrates, thick plates, custom diameters, and precision-polished discs
Ideal for laser mounts, heat spreaders, semiconductor substrates, packaging components, and R&D

Technical Specifications

Property Sort	Property Content	Unit	AIN
Basic Properties	Appearance/Color	–	Grey
	Volume Density	g/cm3	3.3
	Surface roughness	μm	0.2∼0.75
	Warping	Length %	≤ 3 %
Thermal Properties	Thermal Conductivity (20°C)	W/m.K	170
	Thermal Expansivity (20°C∼400°C)	x10-6/°C	4-5
	Thermal Expansivity (400°C∼800°C)	x10-6/°C	5-6
Mechanical Properties	Flexural Strength	MPa	≥ 350
Electrical Properties	Dielectric Constant	1MHz	8-9
	Dielectric Strength	kV/mm	≥ 15
	Volume resistivity	20°C Ω.cm	≥ 1014
With inert gas protection, the maximum temperature can reach 1800 – 1950 degrees
Under air conditions, the temperature can reach up to 1200 degrees
Under vacuum conditions, the maximum operating temperature is 1600 – 1800 degrees.

Applications of Aluminum Nitride Sheets, Discs, Plates & Substrates

Our aluminum nitride discs, aluminum nitride sheets, aluminum nitride substrates, and aluminum nitride plates are used extensively in:

Semiconductor device packaging
High-power LED modules and laser diode mounts
RF and microwave electronics
Heat spreaders and thermal interface substrates
High-density circuit boards and insulation layers
Power electronics and IGBT modules
Precision optical and sensor platforms

If you need a reliable aluminum nitride substrate supplier in the USA, M-Kube offers both standard and custom-engineered AlN plates and discs tailored to high-performance requirements.

Why Choose M-Kube Enterprise LLC for Aluminum Nitride Discs, Plates & Substrates?

High-precision machining & polishing for superior flatness and finish
Custom fabrication for plates, substrates, discs, or engineered shapes
Advanced thermal and dielectric performance for critical applications
USA-wide delivery with fast turnaround
Competitive aluminum nitride plate price for both small and bulk quantities
Engineering support to help select the right substrate thickness and specifications

Quality and Compliance

All M-Kube ceramic and refractory products are manufactured in ISO-certified facilities and tested in accordance with ASTM and international standards. This ensures every aluminum nitride sheet, disc, substrate, and plate meets global benchmarks for purity, consistency, thermal conductivity, and mechanical performance.

Request a Quote Today

Looking to buy aluminum nitride plates, compare aluminum nitride plate prices, or source precision aluminum nitride substrates?

M-Kube Enterprise LLC is your trusted US supplier for high-performance ALN ceramic components.

📞 Call us: +1-732-808-1999
📧 Email: info@mkubeenterprise.com
🌐 Visit: www.mkubeenterprise.com for a fast, customized quotation.

Product FAQ's

Are Aluminum Nitride discs the same as Aluminum Nitride plates?

Yes, many manufacturers refer to flat AlN components as Aluminum nitride plates or substrates.
The main difference is shape:

Aluminum nitride plate – rectangular or square shape
Aluminum nitride disc – round/circular shape

Both offer the same performance properties depending on thickness and purity.

What affects the Aluminum nitride plate price?

Ans: The Aluminum nitride plate price (including discs and substrates) depends on:

Diameter or plate size
Thickness
Purity and density
Polished vs. unpolished surface
Custom machining or drilled holes
Quantity ordered

Higher-density, polished Aluminum nitride substrates cost more due to tighter tolerances.

Do Aluminum Nitride discs offer electrical insulation?

Yes. Aluminum nitride is an excellent dielectric material. Aluminum nitride substrates are used in power modules and RF components because they provide both:

High electrical insulation
High thermal conductivity

This makes AlN discs superior to alumina in high-power applications.

Are custom Aluminum Nitride plates and discs available?

Yes. Custom options include:

Specific diameters
Precise thickness tolerances
Polished surfaces (Ra < 0.2 µm available)
Laser-cut holes or slots
Machined edges

This is ideal for custom Aluminum nitride substrate requirements.

Where can I find Aluminum nitride discs or substrates for sale?

You can find Aluminum nitride discs, plates, and substrates for sale from specialized ceramic manufacturing companies and semiconductor material suppliers. Choosing the right Aluminum nitride substrate supplier ensures consistent purity, machining accuracy, and reliable delivery times.

How long is the delivery time for Aluminum Nitride discs?

Delivery varies based on stock and custom specifications:

Stock discs/plates: 3–7 business days
Custom discs or substrates: 2–5 weeks
Large-volume orders: scheduled production

A reputable supplier will provide clear timelines and support.
