Semi Micro Cuvettes
Inquiry NowProduct Description
M-Kube Enterprise LLC supplies premium-quality semi micro cuvettes designed for precise spectrophotometric analysis when sample volumes are limited. Manufactured from high-quality optical quartz and optical glass, our cuvette semi micro range delivers exceptional optical clarity, superior chemical resistance, and excellent dimensional accuracy for demanding UV-Visible spectroscopy applications.

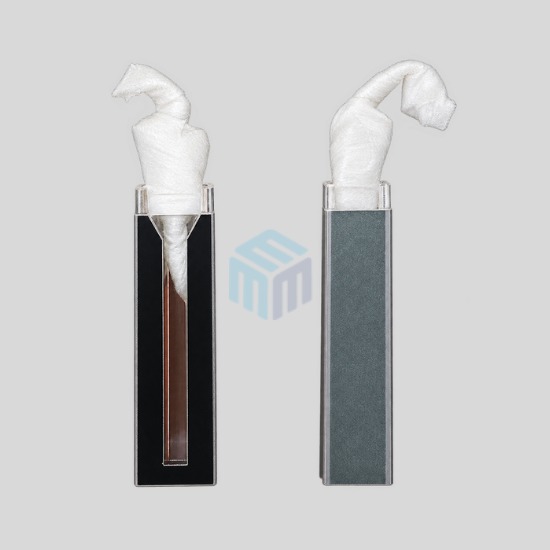

Our product portfolio includes semi micro cell designs, semi micro cell with black walls, semi micro cell with PTFE stopper, and frosted wall configurations to meet the needs of pharmaceutical laboratories, biotechnology research, clinical diagnostics, environmental testing, academic institutions, and industrial quality control laboratories.
Engineered for accurate low-volume measurements, M-Kube Enterprise semi micro cuvettes provide outstanding optical performance while reducing sample consumption. They are compatible with most UV-Vis spectrophotometers and laboratory analytical instruments.
Key Features of Semi Micro Cell Designs
- Manufactured from premium optical quartz or optical glassÂ
- Optimized for accurate analysis of low-volume samplesÂ
- Excellent UV and visible light transmissionÂ
- High optical precision and dimensional consistencyÂ
- Outstanding resistance to chemicals, acids, and laboratory solventsÂ
- Available as semi micro cell with black walls to minimize stray light interferenceÂ
- Semi micro cell with PTFE stopper available for volatile and sensitive samplesÂ
- Standard optical path lengths with reduced sample volume requirementsÂ
- Precision-polished optical windows for reliable analytical resultsÂ
- Compatible with most UV-Vis spectrophotometersÂ
- Durable, reusable, and easy to cleanÂ
- Custom dimensions, path lengths, and specialized configurations availableÂ
Semi Micro Cuvettes: Typical Technical Specifications
| Material | Code | Transmission on Empty Cell | Deviations in Matching | ||||||
| Optical Glass | G | At 350nm approx. 82% | At 350nm max. 0.5% | ||||||
| UV Quartz Glass | H | At 220nm approx. 80%Â | At 220nm max. 0.5% | ||||||
| ES Quartz Glass | Q | At 200nm approx. 80% | At 200nm max. 0.5% | ||||||
| IR Quartz Glass | I | At 2730nm approx. 88% | At 2730nm max. 0.5% | ||||||
| Product Name | Outside Dimensions
H x W x D |
Path Length mm | Inside Width mm | Volume ml | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Product number | |||||||
| Es Quartz Glass
19nm-2500nm |
IR Quartz Glass
250nm -3500nm |
Optical Glass 340nm-2500nm | ||||||||||
| Semi Micro Cell with black walls and with lid | 45×12.5×7.5 – 45×12.5×102.5 | 5-100 | 4 | 0.7 – 14 | Q-23 – Q-29 | I-23 – I-29 | G-23 – G-29 | |||||
| Semi Micro cell with PTFE Stopper | 45×12.5×7.5 – 45×12.5×102.5 | 5-100 | 4 | 0.7 – 14 | Q-33 – Q-39 | I-33 – I-39 | G-33 – G-39 | |||||
| Semi Micro cell with black walls and with Lid | 45×12.5×7.5 – 45×12.5×102.5 | 5-100 | 5 | 0.85 – 17.5 | Q-143 – Q-149 | I-143 – I-149 | G-143 – G-149 | |||||
| Semi Micro cell with frosted walls and with Lid | 45×12.5×7.5 – 45×12.5×102.5 | 5-100 | 4 | 0.7 – 14.0 | Q-263 – Q-269 | I-263 – I-269 | G-263 – G-269 | |||||
| Semi Micro cell with frosted walls and with Lid | 45×12.5×7.5 – 45×12.5×102.5 | 5-100 | 5 | 0.85 – 17.5 | Q-273 –Q-279 | I-273 –I-279 | G-273 –G-279 | |||||
| Semi Micro cell with frosted walls with Teflon stopper | 45×12.5×7.5 – 45×12.5×102.5 | 5-100 | 4 | 0.7 – 14.0 | Q-293- Q-299 | I-293- I-299 | G-293- G-299 | |||||
| Semi Micro cell with frosted walls and with Teflon stopper | 45×12.5×7.5 – 45×12.5×102.5 | 5-100 | 5 | 0.85 – 17.5 | Q-393 – Q-399 | I-393 – I-399 | G-393 – G-399 | |||||
Applications of Semi Micro Cuvettes
UV-Visible Spectroscopy
Our semi micro cuvettes are designed for accurate absorbance and transmittance measurements while minimizing sample consumption. They are ideal for UV-Vis spectroscopy applications requiring high precision with limited sample availability.
Pharmaceutical Analysis
Suitable for drug development, formulation studies, dissolution testing, stability analysis, and routine quality control where conserving valuable samples is essential.
Biotechnology & Life Sciences
Widely used for DNA, RNA, protein quantification, enzyme assays, cell culture analysis, and molecular biology research requiring precise low-volume measurements.
Clinical & Diagnostic Laboratories
Designed for clinical chemistry, diagnostic testing, and biomedical research where precious biological samples require reliable and repeatable spectrophotometric analysis.
Environmental & Chemical Analysis
Ideal for water quality testing, environmental monitoring, chemical concentration analysis, and laboratory reagent evaluation while reducing sample volume requirements.
Research & Academic Laboratories
Used extensively in universities, research institutes, government laboratories, and industrial R&D facilities for spectroscopy, analytical chemistry, and material characterization.
Why Choose M-Kube Enterprise LLC?
As a trusted semi micro cuvettes supplier, M-Kube Enterprise provides precision-engineered laboratory cuvettes designed to meet the performance requirements of research, pharmaceutical, biotechnology, environmental, and industrial laboratories throughout the United States.
Our advantages include:
- Premium-quality semi micro cuvettes manufactured to stringent quality standardsÂ
- Extensive selection of semi micro cell configurations for diverse laboratory applicationsÂ
- Available as semi micro cell with black walls for improved optical performanceÂ
- Semi micro cell with PTFE stopper for volatile and sensitive samplesÂ
- Precision optical manufacturing for highly accurate spectrophotometric measurementsÂ
- Multiple semi micro cuvette volume options to suit different sample requirementsÂ
- Custom path lengths, dimensions, and specialized cell designs availableÂ
- Competitive pricing and dependable product qualityÂ
- Technical support for spectroscopy and analytical laboratory applicationsÂ
- Reliable supply for pharmaceutical, biotechnology, academic, environmental, and industrial laboratoriesÂ
Every cuvette is manufactured in ISO-certified facilities using premium optical materials and rigorous quality control procedures. Each product is inspected for optical transmission, dimensional accuracy, and material consistency to ensure dependable analytical performance and long service life.
Request a Quote for Semi Micro Cuvettes
Looking for high-quality semi micro cuvettes, cuvette semi micro, semi micro cell, semi micro cell with black walls, or semi micro cell with PTFE stopper?
M-Kube Enterprise is a trusted semi micro cuvettes supplier, offering precision-engineered laboratory cuvettes for pharmaceutical companies, biotechnology laboratories, research institutions, universities, environmental testing facilities, and industrial quality control laboratories across the United States.
📞 Call us: +1-732-808-1999
📧 Email: info@mkubeenterprise.com today to request pricing, technical specifications, custom configurations, or expert assistance in selecting the right semi micro cuvette volume and cell configuration for your UV-Vis spectroscopy application.
Product FAQ's
Does a PTFE stopper completely prevent sample evaporation?
A stopper can reduce exposure to the surrounding environment, but it should not automatically be treated as a completely sealed pressure vessel. The actual level of containment depends on the cell and stopper design. Confirm the required sealing performance with your semi micro cuvettes supplier if evaporation control is critical.Â
How can I prevent losing valuable samples during transfer into a semi micro cell?
Use a pipette or dispensing method appropriate for the small sample volume and avoid overfilling. Selecting the correct semi micro cuvette volume can also reduce unnecessary sample consumption. A stopper can provide additional protection after the sample has been transferred.Â
What should I do if my semi micro cuvettes become cloudy or stained?
Clean them using a method compatible with the cuvette material and the residue involved. Avoid abrasive materials that can scratch optical surfaces. If staining or cloudiness remains after appropriate cleaning, replacing the cell may be preferable to continuing to use a damaged optical surface.Â
Can I reuse semi micro cuvettes?
Reusable cells can be used repeatedly when the material and application permit it, provided they are cleaned properly between samples. For trace-level or contamination-sensitive work, determine whether reuse could introduce carryover before choosing reusable semi micro cuvettes.Â
How much do semi micro cuvettes cost?
The price depends on material, optical quality, path length, dimensions, volume, wall configuration, stopper type, quantity, and manufacturing requirements. For a meaningful comparison, make sure quotations specify the same semi micro cell configuration.Â
What information should I include when requesting a quote for semi micro cuvettes?
Include:
- Spectrophotometer model
- Required cell material
- Optical path length
- Minimum sample volume
- Total or working semi micro cuvette volume
- External dimensions
- Black-wall requirement
- PTFE stopper requirement
- Quantity
- Required delivery date
Providing these details helps the semi micro cuvettes supplier quote the correct product rather than a generic semi-micro cell.
