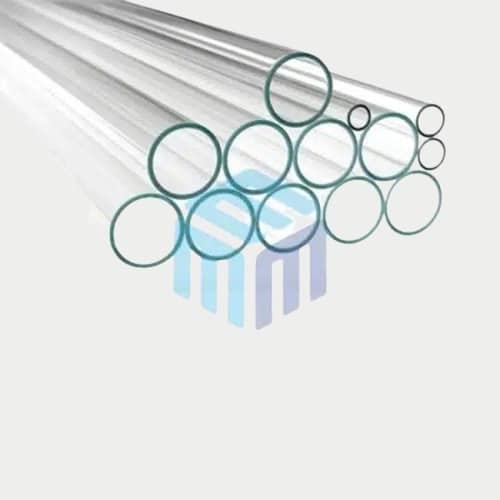

Properties and Applications of Quartz Tubes

Quartz tubes are most widely used in industries due to their unique combination of properties, which include high thermal stability, optical clarity, and chemical resistance. Below is an overview of the key properties and common applications of quartz tubes:

Properties of Quartz Tubes

Quartz tubes are widely used in high-temperature and high-purity applications due to their exceptional thermal and chemical properties. Before selecting the right type for your process, it’s important to understand what makes them so effective.

Thermal Properties of Quartz tubes

Quartz tubes offer outstanding thermal properties, including a high softening point around 1680°C and excellent thermal shock resistance, allowing them to handle rapid temperature changes without cracking. They also have low thermal expansion, which ensures dimensional stability under fluctuating heat conditions. This makes quartz tubes ideal for high-temperature and precision heating applications.

• High Thermal Stability: Quartz tubes can withstand very high temperatures, up to 1,050°C for prolonged periods. They have a melting point of about 1,710°C, making them suitable for high-temperature processes.
• Low Thermal Expansion: Quartz has an extremely low coefficient of thermal expansion, meaning it doesn’t expand or contract significantly with temperature changes. This property provides excellent thermal shock resistance, allowing quartz tubes to with rapid heating and cooling without cracking.
• Heat Resistandance: Quartz tubes can resist thermal cycling, making them ideal for applications where consistent and repeated exposure to high temperatures is required.

Optical Properties of Quartz tubes

Quartz tubes have excellent optical properties, offering high transparency across a wide range of wavelengths—from ultraviolet through visible to infrared. Their exceptional clarity and low optical absorption make them ideal for applications in lighting, spectroscopy, and semiconductor processing where precise light transmission is critical.

• High Transparency: Quartz tubes are highly transparent to a broad spectrum of light, including ultraviolet (UV) and visible light. This makes them suitable for optical and photonics applications.
• UV Transmission: They have excellent UV transmission, which is crucial for applications such as UV sterilization and photolithography.
• Optical Clarity: The optical clarity of quartz tubes makes them suitable for use in scientific instruments, optical fibers, and other applications requiring precise light transmission.

Chemical Properties Of Quartz Tube

Quartz tubes are highly resistant to most acids and corrosive chemicals, except hydrofluoric acid, ensuring durability in harsh chemical environments. Their chemical inertness makes them ideal for processes that require high purity and contamination-free conditions. This stability helps maintain consistent performance even under aggressive processing atmospheres.

• Chemical Inertness: Quartz is chemically inert and highly resistant to most acids, bases, and solvents. It does not react with most substances, making it ideal for use in corrosive environments.
• Purity: Quartz tubes are available in very high purity levels, which is essential for applications in semiconductor manufacturing, where contamination must be minimized.

Electrical Properties of Quartz Tube

Quartz tubes exhibit excellent electrical insulation properties, even at high temperatures, making them ideal for use in furnaces and electronic applications. Their low dielectric loss ensures minimal energy dissipation, which is critical in maintaining efficient and stable electrical systems. This makes quartz a reliable choice for insulating components in demanding environments.

• Electrical Insulation: Quartz is an excellent electrical insulator, even at high temperatures. This property makes quartz tubes suitable for use in high-temperature electrical insulation applications.

Mechanical Properties of Quartz Tube

Quartz tubes offer good mechanical strength and hardness, enabling them to withstand moderate mechanical stresses and maintain structural integrity at high temperatures. They are also resistant to scratching and abrasion, which contributes to their long service life. However, like most glass materials, they can be brittle and require careful handling to avoid impact damage.

• Durability: Quartz tubes are mechanically strong, though they can be brittle. Their resistance to thermal shock contributes to their durability in high-temperature applications.
• Hardness: Quartz is relatively hard (7 on the Mohs scale), providing good scratch resistance and maintaining its structural integrity under mechanical stress.

Applications of Quartz Tubes

Quartz tubes are widely used in high-temperature furnaces, semiconductor processing, and laboratory equipment due to their excellent thermal and chemical stability. They’re also essential in UV lamps and optical applications, where their superior light transmission is critical. These versatile properties make quartz tubes a trusted choice across industries from electronics to advanced research.

1. Laboratory and Scientific Use

• High-Temperature Furnaces: Quartz tubes are used as reaction vessels or protective enclosures in high-temperature furnaces due to their ability to withstand extreme heat and thermal cycling.
• Chemical Reactions: Their chemical inertness makes them ideal for conducting reactions involving aggressive chemicals or for processes requiring a contaminant-free environment.
• Spectroscopy and Optical Instruments: The optical clarity and UV transparency of quartz tubes are essential in spectroscopy, where they are used as sample containers or light guides.

2. Semiconductor Manufacturing

• Diffusion and Oxidation Processes: Quartz tubes are widely used in semiconductor manufacturing, particularly in diffusion and oxidation furnaces, where their high purity and thermal stability are critical.
• Wafer Processing: The tubes serve as enclosures for semiconductor wafers during various high-temperature processes, ensuring minimal contamination and consistent thermal distribution.

3. UV Sterilization and Disinfection

• Germicidal Lamps: Quartz tubes are used in UV germicidal lamps, where their high UV transmission allows for effective disinfection of air, water, and surfaces in medical, industrial, and residential settings.
• Water Purification Systems: They are used in UV water purification systems, where they protect the UV lamps and ensure efficient UV light transmission.

4. Industrial Applications

• Heating Elements: Quartz tubes are used as protective sheaths for heating elements in industrial furnaces and heaters, particularly in processes that require uniform and controlled heating.
• Glass Manufacturing: In glass production, quartz tubes can be used to house high-intensity lamps or as part of the equipment used in glass processing.

5. Optical and Photonic Devices

• Optical Fibers: Quartz tubes are used in the production of optical fibers, where their transparency and purity ensure efficient light transmission with minimal loss.
• Laser Systems: They are also used in laser systems as beam guides or enclosures, benefiting from quartz’s high optical clarity and resistance to heat.

6. Environmental Monitoring and Sensing

• Gas Analyzers: Quartz tubes are employed in environmental monitoring equipment, such as gas analyzers, where their chemical resistance and transparency are crucial for accurate readings.
• Aerosol Research: In aerosol research, quartz tubes are used to collect and analyze particulate samples, leveraging their inertness and thermal stability.

Summary

Quartz tubes are a versatile material with a wide range of applications due to their high thermal stability, optical clarity, chemical resistance, and electrical insulation properties. They are essential in industries such as semiconductor manufacturing, laboratory research, UV sterilization, industrial heating, and optical devices. Choosing quartz tubes for your application ensures reliable performance in demanding environments where high temperatures, purity, and chemical inertness are required.
